ETQP5M Series Magnetically Shielded Wire Wound Choke Panasonic ECQP5M choke coil provides a reliable solution. Excellent inductance stability is achieved by using a magnetic iron alloy material that is heat resistant up to +150°C. The electromagnetic noise is kept low by using new metal composite core technology. Also, since it has a one-piece structure, it has high vibration resistance.
AEC-Q200 certified High reliability High bias current stability Low electromagnetic noise High efficiency Low winding RDC Low core eddy current loss.
Typical applications include DC-DC converters and noise filters that require high peak current and operating temperature capabilities. These choke coils are AEC-Q200 qualified and suitable for automotive applications.

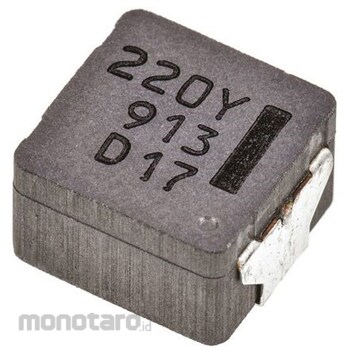

Panasonic Wire wound inductor surface mount 22 μH 4.8A 8.5 x 8 x 5.4mm 1 bag 5 pieces
#Grup produk P115630529
Spesifikasi
| AS ONE Part Number | 65-7204-55 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Inductance: 22 μH*Maximum DC current: 4.8A*Package/Case: 0854*Length: 8.5mm*Depth: 8mm*Height: 5.4mm*Dimensions: 8.5 x 8 x 5.4mm*Tolerance: ±20% *Maximum DC resistance: 70mΩ*Series: ETQP5M*Core material: Metal composite *Operating temperature Min: -40°C
