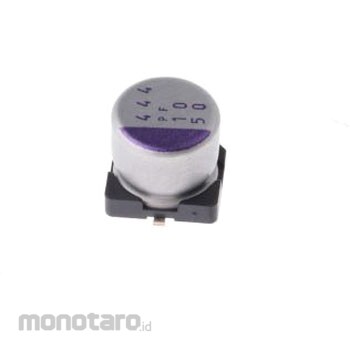

Panasonic Surface mount type OS-CON conductive polymer hybrid aluminum electrolytic capacitor SVPF series

Specification
Capacitance = 22μF Technology = Polymer Voltage = 35V dc Mounting Type = Surface Mount Dimensions = 6.3 x 5.9mm Height = 5.9mm Diameter = 6.3mm Operating Temperature Min = -55°C Operating Temperature Max = +105°C Series = OS- CON Life = 5000h OSCON Solid Electrolytic SVPF Series. Panasonic's OS-CON SVPF electrolytic capacitors have an aluminum solid construction and use a highly conductive polymer. These aluminum capacitors can handle high voltages up to 50 V dc and have large capacitances up to 1000 μF. Surface mount 5000 hours guaranteed @ +105 °C Excellent noise rejection Long life High voltage High reliability High ripple current Halogen free Applications These surface mount capacitors are ideal for industrial PCs, motor drivers, measurement equipment, power supplies, security Recommended for industrial applications such as cameras and inverters. SVPF OS-CON capacitors are also suitable for home appliances such as air conditioners and home information appliances. Applications for which these electrolytic capacitors are suitable include, for example, infotainment and comfort accessories for vehicles, and ICT such as PCs, base stations, SSDs and data centers.
