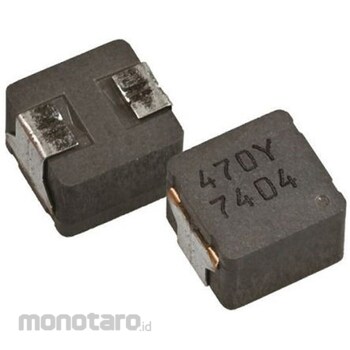

Panasonic Surface mount inductor 3.3 μH 8.6A 5.5 x 5 x 3mm 1 set 1000 pieces
#Grup produk P115625129
Spesifikasi
| AS ONE Part Number | 65-7058-61 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
ETQP3M Series Wire Wound Choke Panasonic ETQP3M choke coil (also known as PCC-M0530M series) is a reliable solution. Excellent inductance stability is achieved by using a magnetic iron alloy material that is heat resistant up to +150°C. The electromagnetic noise is kept low by using new metal composite core technology. Also, since it has an integrated structure, it is vibration resistant.
Feature
Specification*Quantity: 1 reel (1000 pieces)*Inductance: 3.3 μH*Maximum DC current: 8.6A*Package/Case: 0530*Length: 5.5mm*Depth: 5mm*Height: 3mm*Dimensions: 5.5 x 5 x 3mm*Tolerance: ±20%*Maximum DC resistance: 34.4mΩ*Series: ETQP3M*Core material: Metal composite*Maximum self-resonant frequency: 100kHz*Inductor structure: Wire-wound type
