UL, CSA
For through-hole type, refer to part number: 113-8825 113-8825.

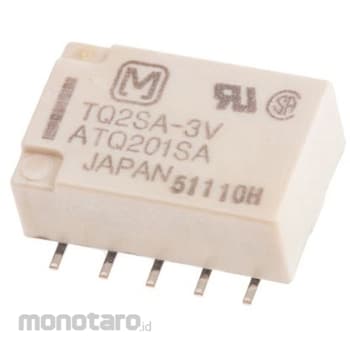

TQ2 SeriesThis is a surface mount relay offering high sensitivity in a 6mm profile.
Flat and compact body with thin surface mount terminals High frequency characteristics Compatible with automatic SMD insertion Low thermal EMF (approx. 2 μV) Ideal for communication equipment, measuring equipment, office automation equipment, etc.
Panasonic Relay 3V dc 2c contact PCB mount type
#Grup produk P115569221
Spesifikasi
| AS ONE Part Number | 65-8095-97 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Coil voltage: 3V dc*Contact configuration: DPDT*Mounting type: PCB mount*Switching current: 2A*Number of poles: 2*Terminal type: Surface mount*Coil resistance: 64.3 Ω*Coil power: 140mW*Maximum switching voltage AC: 125V ac*Maximum switching voltage DC: 220V dc*Length: 14mm*Depth: 9mm*Maximum switching power AC: 62.5VA*Code number: 699-6247
