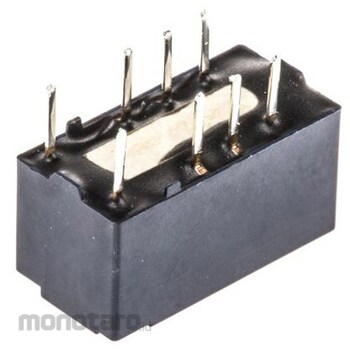

Panasonic Relay 24V dc 2c contact PCB mounting type 1 set 40 pieces
#Grup produk P115568921
Spesifikasi
| AS ONE Part Number | 65-8095-36 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
UL certified, CSA, BSI
TXD SeriesThis PCB mount relay achieves a breakdown voltage of 2 kV between the contacts and coil, providing high contact reliability. This PCB relay is also shock and vibration resistant, and its sealed construction allows for automatic cleaning. Typical applications include fax machines, modems, communication/medical, automotive, and security equipment.
Enhanced surge resistance Compliant with the supplementary insulation class of the EN standard (EN60950)
Feature
Specification*Quantity: 1 tube (40 pieces)*Coil voltage: 24V dc*Contact configuration: DPDT*Mounting type: PCB mount*Switching current: 2A*Number of poles: 2*Terminal type: Through hole*Coil resistance: 2.504 kΩ*Coil power: 310mW*Maximum switching voltage DC: 220V dc*Length: 15mm*Height: 8.2mm*Maximum switching power DC: 60 W*Code number: 173-8998
