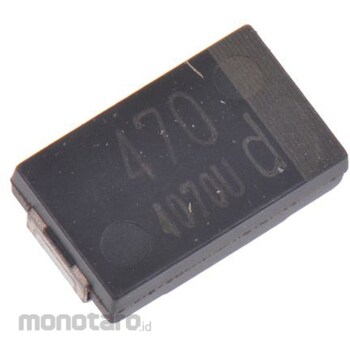

Panasonic Polymer Capacitor, SP-CAP SX, 470μF, 2V dc, EEFSX0D471E4
#Grup produk P115564484
Spesifikasi
| Capacitance | 470μF |
|---|---|
| Dimensions (mm) | 7.3x4.3x1.9 |
| Length (mm) | 7.3 |
| Maximum Operating Temperature (°C) | 105 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Series | SP-CAP SX |
| Surface Mount Device | Surface mount |
| Technology | polymer |
| Tolerance | ±20% |
| Voltage (V) | 2dc |
| polarity | With polarity |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationSP-CAP Surface Mount Type S Series. Panasonic Conductive Polymer Aluminum Electrolytic Capacitors. These capacitors are ideal for ensuring the safe operation of sensitive components in electronic circuits. Features and Benefits: SS, ST, and SR series are low profile (height 1.0 mm (minimum), 1.1 mm, 1.4 mm). Low ESR, SX series: 4.5 mΩ to 9 mΩ, and SS, ST, and SR series: up to 15 mΩ. SX series: up to 560 μF. Operating Temperature Range: -55 to +105°C. Rated Operating Voltage Range: 2 V dc to 6.3 V dc. Capacitance Tolerance: ±20%. DC Leakage Current: I ≤0.1 CV (μA) after 2 minutes.
