A push button for operating electromagnetic switches. When turning the load on and off directly, use the push button switch.
* When the embedded type is connected to the switch box, the gutter space is small, so be careful of the wiring.
* If the length of the wiring exceeds 30 m, or if there is an electric wire with a large current flowing nearby, the pilot lamp may not go out due to the floating capacitance.
* Tighten the wire connections with the proper torque.
* Up to two wires of the same size can be inserted into the same terminal. Use crimp terminals when connecting 3 or more wires or wires with different diameters.

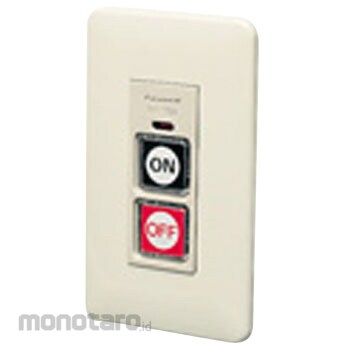

Panasonic Pilot push button for operation Embedded type (with full color plate)
#Grup produk P115562848
Spesifikasi
| Conformed Standard | JIS C4521 |
|---|---|
| Connectable Wire (mm²) | 2 (stranded wire), 1.6mm (single wire) |
| Contact Configuration | 1a (button display / ON) + 1b (button display / OFF) |
| Current Capacity (A) | (Contact) AC250V or less / 1.5, AC600V or less / 1.5 |
| Included Accessories | For 3 full color plates (part number: WN6003W010) |
| Number of Buttons | 2 |
| Part Number | BL6002K |
| Rated operating current (A) | 0.015~1.5 |
| Rated operating voltage (V) | AC24~600 |
| Rating | 50Hz / 60Hz (frequency), 600V (insulation voltage), 15mA (minimum lamp operating current) |
| Screw Dimensions | M3.5 |
| Terminal screw | 2-3.5 (standard compatible, round crimp terminal), 1.2 N . m (12.2 kgf . cm) (appropriate tightening torque) |
| Tightening Torque (N m) | (Standard) 0.8-1.2 |
| Type | Embedded type |
