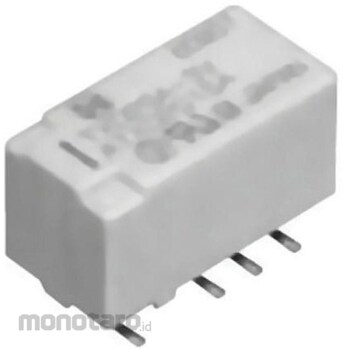

Panasonic Latching Relays DPDT 12V dc
#Grup produk P115558942
Spesifikasi
| AS ONE Part Number | 65-8096-79 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
UL certified, CSA, BSI
TX2 Series, Latching These surface mount PCB relays have a breakdown voltage of 2000 V ac, excellent surge resistance, vibration and shock resistance.Typical applications for these surface mount PCB relays include communications, measurement, security, consumer appliances, automotive and medical equipment.
High sensitivity of 200 mW High contact capacitance, 2 A, 30 V dc
Feature
Specification*Coil voltage: 12V dc*Contact configuration: DPDT*Mounting type: surface mount*Maximum switching voltage DC: 220V dc*Maximum switching power DC: 60 W*Length: 15mm*Depth: 7.4mm*Height: 8.2mm*Dimensions: 15 x 8.2 x 7.4mm*Terminal type: through hole*Application type: automotive*Coil power: 200mW*Code number: 699-6373
