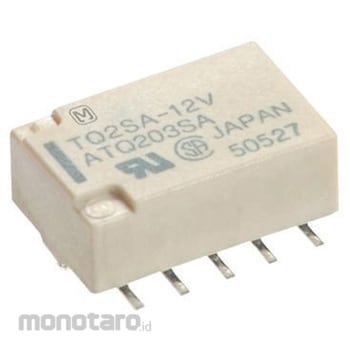

Panasonic Latching Relays DPDT 12V dc
#Grup produk P115558924
Spesifikasi
| AS ONE Part Number | 65-8096-58 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
UL Certified, CSA
For through-hole type, refer to representative part number: 113-8825 113-8825
TQ2 Series, Latching These low profile PCB surface mount relays are only 6mm high yet offer a 2A capacity and high sensitivity.
Flat, compact body and low profile surface mount terminals High frequency characteristics Compatible with automatic SMD insertion Low thermal EMF (approx. 2 μV) Nominal operating power: 280 mW / 1 coil latching type: 200 mW Ideal for communication applications, measurement, QA equipment, etc.
Feature
Specification*Coil voltage: 12V dc*Contact configuration: DPDT*Mounting type: PCB mount*Maximum switching voltage AC: 125V ac*Maximum switching voltage DC: 220V dc*Maximum switching power DC: 60 W*Length: 14mm*Depth: 11.5mm*Height: 5.6mm*Dimensions: 14 x 5.6 x 11.5mm*Terminal type: Surface mount*Switching current: 1A*Voltage resistance between coil and contacts: 1.5kV*Code number: 699-6250
