DS Series - Latching These PCB mount sensitive miniature relays are all common in height (9.8mm) and width (9.9mm) for easy PCB mounting. Ideal for applications in harsh environments, the high performance polarized magnetic circuit provides high shock and vibration resistance.
Breakthrough height: 9.8 mm Suitable for use in harsh environments Compatible with automated soldering and cleaning systems Gold-clad twin contacts ensure high reliability Sensitivity: 200 mW nominal operating power Polarized magnetic circuit provides shock and vibration resistance DIL terminal array

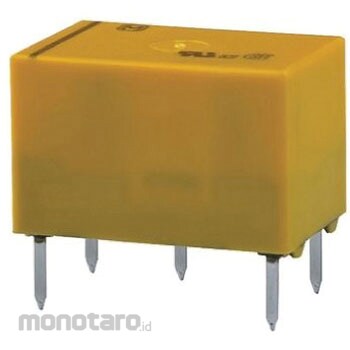

Panasonic Latching Relay SPDT 24V dc
#Grup produk P115558863
Spesifikasi
| AS ONE Part Number | 65-8096-46 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Coil Voltage: 24V dc*Contact Configuration: SPDT*Mounting Type: PCB Mount*Maximum Switching Voltage AC: 250V ac*Maximum Switching Voltage DC: 220V dc*Maximum Switching Power DC: 60 W*Length: 15mm*Depth: 9.9mm*Height: 9.9mm*Dimensions: 15 x 9.9 x 9.9mm*Terminal Type: Through Hole*Switching Current: 3A*Operating Temperature Min: -40°C*Code Number: 699-6033
