UL Certified, CSA, BSI
TX Series - InrushThis miniature PCB mount relay allows you to handle 7.5 A inrush current. This compact PCB relay also offers high contact capacity and excellent vibration/shock resistance. The relay is sealed for automatic cleaning. Main Applications

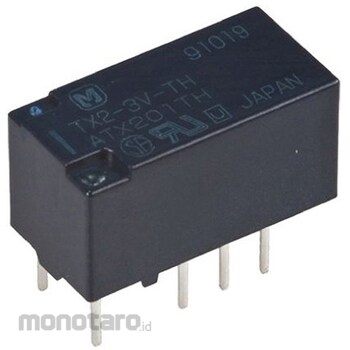

Panasonic Latching Relay DPDT 4.5V dc 1 set of 40
#Grup produk P115558784
Spesifikasi
| AS ONE Part Number | 65-8059-03 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Quantity: 1 tube (40 pieces)*Coil voltage: 4.5V dc*Contact configuration: DPDT*Mounting type: PCB mount*Maximum switching voltage AC: 250V ac*Maximum switching voltage DC: 220V dc*Maximum switching power DC: 60 W*Length: 15mm*Depth: 7.4mm*Height: 8.2mm*Dimensions: 15 x 8.2 x 7.4mm*Terminal type: Through hole*Switching current: 7.5A*Operating temperature Min: -40°C*Code number: 173-8991
