MKP EZPE series Panasonic EZPE capacitors are constructed of a split pattern metallized dielectric and polypropylene film. The case and encapsulated resin provide flame retardant properties. Built-in self-protection features make it a highly safe capacitor that can self-recover.
Low losses Low ESR High reliability Long life Tin plated wire terminals Designed for DC voltage.
for

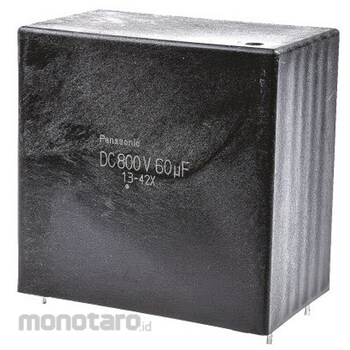

Panasonic Film capacitor 800V dc 60μF ±10%
#Grup produk P115555529
Spesifikasi
| AS ONE Part Number | 65-6938-65 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Capacitance: 60μF *Voltage: 800V dc *Mounting type: Through hole *Tolerance: ±10%*Series: EZPE*Lead spacing: 20.3 mm, 52.5 mm*Length: 57.5mm*Depth: 35mm*Equivalent series Resistance: 5.6mΩ*Dimensions: 57.5 x 35 x 56mm*Temperature characteristics: Polypropylene*Terminal specifications: Through-hole mounting*Lead diameter: 1.2mm
