Panasonic Electrolytic capacitor 22μF 80V dc 1 box 1000 pieces
#Grup produk P115546947
Spesifikasi
| AS ONE Part Number | 65-6967-01 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

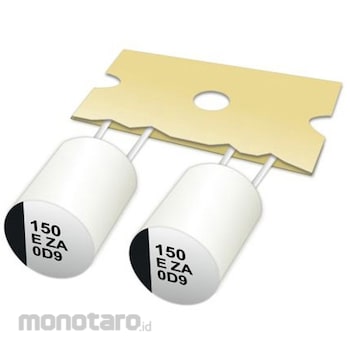

PanasonicZA series conductive polymer hybrid aluminum electrolytic capacitors have a tolerance of ±20% and a voltage range of 80V. Size code F has a capacitance of 22μF and achieves an ultra-low ESR of 20mΩ to 45mΩ. 10,000 hours at 105°C (105°C standard product) Taping product for automatic insertion Compliant with AEC-Q200
Feature
Specification* Capacitance: 22μF * Voltage: 80V dc * Mounting type: Through hole * Technology: Hybrid * Dimensions: 8 x 9.5 x 0.6mm * Length: 9.5mm * Diameter: 8mm * Operating temperature Max: +105°C * Lead Spacing: 3.5mm
