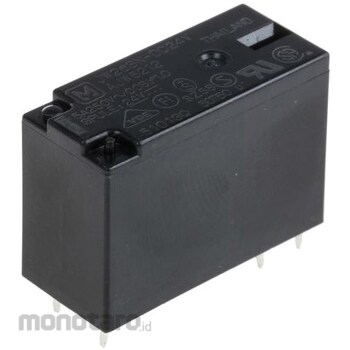

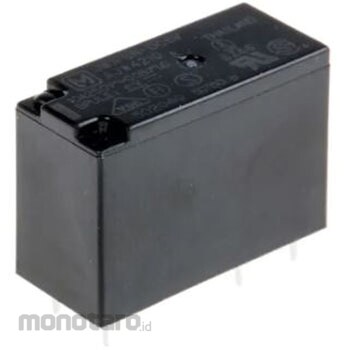

Panasonic Board-mounted surge-resistant general-purpose relay JW series

Specification
Coil Voltage = 24V dc Contact Arrangement = DPNO Switching Current = 5 A Coil Resistance = 1.1 kΩ Maximum Switching Voltage AC = 250V Maximum Switching Voltage DC = 30V Application Type = Household Appliances Length = 28.6mm Depth = 12.8mm Height = 20mm Dimensions = 28.6 x 12.8 x 20mm Operating Temperature Max = +60°C UL, CSA, VDE, SEMKO, SEV. JW Series Relays. These compact board mount power relays feature a sealed construction and a common thermal footprint. , with high surge withstand voltage. Typical applications include consumer electronics, office equipment and industrial machinery. Monostable power relay with long life and high breakdown voltage High surge withstand voltage, 10,000 V between contact and coil Seal structure Dimensions: H 20 x W 28.6 x D 12.8 mm
