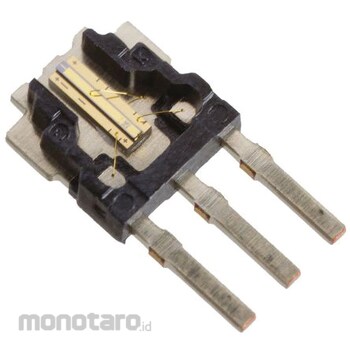

Panasonic Board mounted type laser diode LNCT series

Specification
Peak Wavelength = 665 nm, 791 nm Optical Output Power = 300 mW, 380 mW Number of Pins = 3 Mounting Type = Through Hole Mounting Vertical Beam Divergence FWHM = 19 / 19.5° Parallel Beam Divergence FWHM = 11.5°, 13° Maximum Operating Current = 180 mA, 275 mA Dimensions = 5.15 x 1.65 x 3.75mm Length = 5.15mm Width = 1.65mm Height = 3.75mm Package type = FLD This product is a Class IIIb laser conforming to IEC60825-1. Safety protection is required while emitting the laser beam. Direct eye exposure to lasers above 1 mW may cause serious eye damage. LNCT Dual Wavelength (Red)/IR Laser Diodes, Panasonic. Panasonic's LNCT series of diodes are dual wavelength laser diodes with a single-chip solution that operate both red and infrared (IR) lasers at low profile. is included in the package. Features Single-chip solution Includes both red and infrared (IR) wavelengths Stable output power at high temperatures Small and flat package size RoHS compliant Benefits No need for multiple components High accuracy of laser beam spacing Conventional 20-30% higher efficiency than laser diodes Small size allows design flexibility Typical Applications: Optical disc drives Laser distance sensors Barcode readers Flow cytometers
