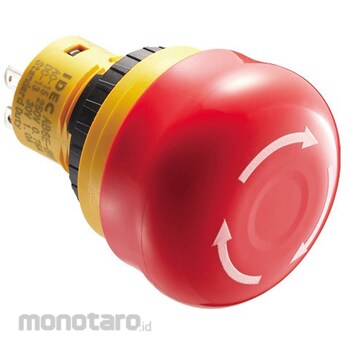

IDEC X6 series emergency stop push button switch
#Grup produk P115510720
Spesifikasi
| Button Color | Red |
|---|---|
| Button Shape | Round (DIA30 medium) |
| Conditional Short Circuit Current (A) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Main Contact | 1b |
| Operating Frequency (operation/hour) | 900 |
| Pollution Degree (Environment to Use) | 3 |
| Protection Class | IP65 |
| Rated Insulation Voltage (V) | 250 |
| Short Circuit Protection Device | 250V/10A fuse (Type aM IEC60269-1/IEC60269-2) |
| Specification | *Plain type*Minimum direct opening force (N): 40*Minimum operating distance to minimum direct opening function (mm): 4.5*Maximum operating distance (mm): 4.5*Overvoltage category: II*Impulse withstand voltage (kV): 2.5 |
| Storage Temperature (°C) | -45 to 80 (but do not freeze) |
| Terminal Shape | Solder terminal |
| Type of Illumination | Non-illuminated |
