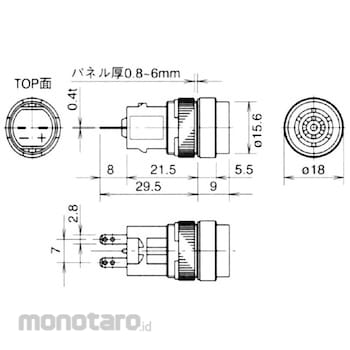

Small high-performance electronic buzzer with Φ16 mounting hole size.
The size and terminal layout are unified with the AP series LED indicator light (Φ16).
IDEC UZ6 type buzzer unit
#Grup produk P115509821
Spesifikasi
| Ambient Humidity (% RH) | 45 to 85 (no condensation) |
|---|---|
| Cap Color | Blue |
| Current Consumption (mA) | 24 |
| Insulation Resistance (MΩ) | 100 or more (DC500V mega) |
| Mass (g) | About 6.5 |
| Protection Class | Closed end type |
| Rated Insulation Voltage (V) | DC60 |
| Rated Working Voltage | DC12V |
| Sound Pressure Level (dB) | Continuous sound, 75 (at rated voltage) (at 0.1m) |
| Terminal Shape | Soldering tab terminal type |
| Type of Unit | Round type |
| Withstand Voltage | Between live parts and non-current parts: 1000 VAC for 1 minute |
