The SS terminal with finger protection structure realizes safety and man-hours. Terminal cover integrated structure, finger protection for maximum safety.
Rolling contact, rake processing contact that self-cleans the contact part.
Jet-proof / oil-proof type [IP65] that shuts out the ingress of water and oil.
UL, CSA certified products, and EN standard compliant products.

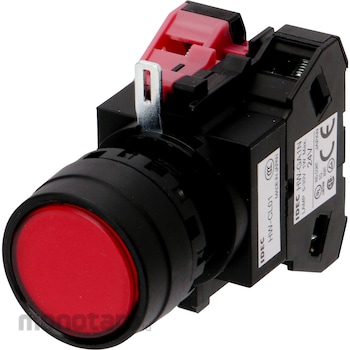

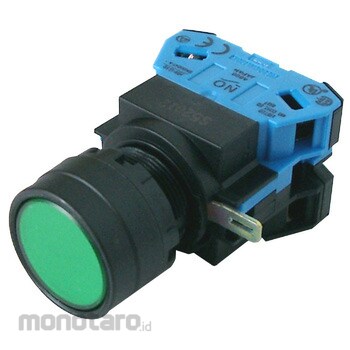

IDEC HW series Illuminated pushbutton switch Φ22 (Round flat LED) (Momentary type)
#Grup produk P115498215
Spesifikasi
| Button Shape | Flat type |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (DC500V mega) |
| Product Name | Illuminated pushbutton switch |
| Protection Class | IP65 |
| Rated Insulation Voltage (V) | 600 |
| Storage Temperature (°C) | -40 to 80 (no icing) |
| Terminal Shape | M3.5 screw terminal |
| Type | Finished product |
| Type of Illumination | LED |
| Type of Operation | Momentary |
| Vibration Resistance (Destruction) | 30Hz, 1.5mm single amplitude |
| Vibration Resistance (Malfunction) | 5-55Hz, single amplitude 0.5mm |
