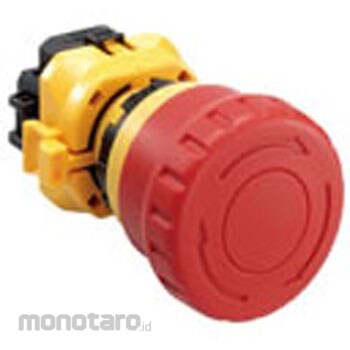

IDEC Diameter 22 XW Series Pushbutton Switch for Emergency Stop (Soldering Terminal / Terminal Type for Printed Circuit Board)
#Grup produk P115495315
Spesifikasi
| Applicable Standard | IEC60947-5-1,EN60947-5-1,IEC60947-5-5,EN60947-5-5,JIS C8201-5-1,UL508,UL991,NFPA79CSA C22.2 No.14,GB14048.5 |
|---|---|
| Contact Material | Gold on silver, crossbar contacts |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 250,000 times or more |
| Pollution Degree (Environment to Use) | 3 |
| Protection Class | Front panel: IP65, IP67 (IEC 60529) |
| Rated Insulation Voltage (V) | 300 |
| Short Circuit Protection Device | 250V/10A fuse (Type aM IEC60269-1/IEC60269-2) |
| Specification | *Minimum direct opening force: 80N*Minimum operating distance to direct opening function: 4mm*Maximum operating distance: 4.5mm*Overvoltage category: II*Impulse withstand voltage: 2.5kV*Recommended tightening torque of lock nut: 2N.m |
| Storage Temperature (°C) | -45 to 80 (but do not freeze) |
| Type of Operation | Push lock pull or turn reset |
