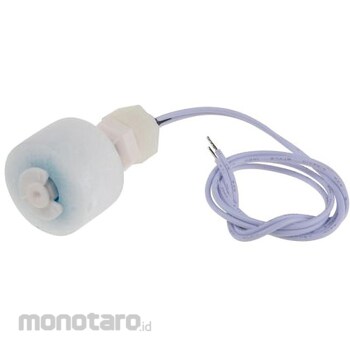

RS PRO RS Pro, float switch

Specification
Detection Type = Float Mounting Type = Vertical Switch Output = Direct Load Body Material = PP Cable Length = 300mm Minimum Operating Temperature = -20°C Maximum Operating Temperature = +80°C Maximum AC Voltage = 140V Maximum DC Voltage = 200V Maximum Current = 1 A Miniature Vertical Float Switches, PLS Series. The PLS series of float switches includes one of the smallest float switches available in the market at 29.5mm in length. Typical applications include water dispensers, tank monitoring systems, drinks vending machines, coffee makers and printing machines Top or bottom tank mounting Polypropylene material suitable for water and dilute acids Fitted with 300mm UL 1007, AWG 24 leads Temperature range: -20 -> +80 °C
