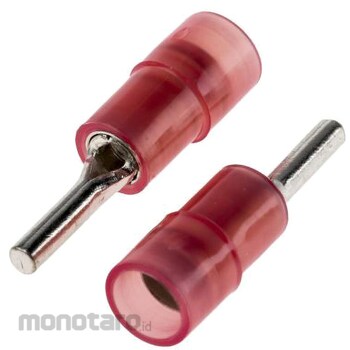

RS PRO RS Pro, Crimp pin terminal

Specification
Insulation = Insulating Insulation = Nylon Minimum Wire Size mm2 = 0.5mm ² Maximum Wire Size mm2 = 1.5mm ² Minimum Wire Size AWG = 22AWG Maximum Wire Size AWG = 16AWG Pin Diameter = 1.9mm Pin Length = 9mm Color = Red Contact Material = Copper UL Recognized, UL Recognized (Canada). Size shown is pin length. RS Pro Insulated Double Crimp Pin Terminals. A range of RS Pro insulated double crimp pin terminals are made of brass and have a copper sleeve barrel. The connector is insulated with nylon in a rugged design for maximum convenience. Various colors are available, and models suitable for various applications are available. All models boast high reliability and excellent quality. Features and Benefits Red, 0.5 -> 1.5 mm ² Blue, 1 -> 2.6 mm ² Yellow, 2.5 -> 6.5 mm ²
