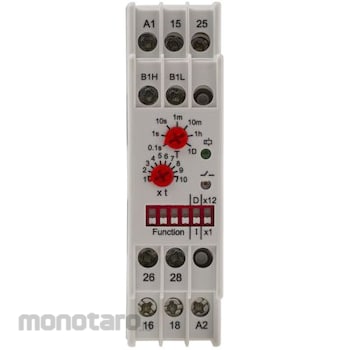

RS PRO RS Pro timer relay multi operation

Specification
Supply voltage = 24 to 240 V ac/dc Time range = 0.1 sec to 120 days Mode of operation = Multi-function mounting type = Number of DIN rail timer functions = 16 Number of contacts = 1 hour increments = Seconds power supply = External contact configuration = SPDT Maximum Current = 5 A Terminal Type = Screw Minimum Voltage = 24 V ac/dc Maximum Voltage = 240 V ac/dc Maximum Operating Temperature = +60°C RS Pro Signal Based Multifunction Time Delay Relay - 22.5 mm. RS Pro Signal Based Multifunction timers have a very wide range of functions, including 16 different timing functions. Time delay relays have supply voltage activation and signal activation options. 16 timing functions selected by DIP switches 22.5 mm width DIN rail mounting Multi-function signal activated and power activated 2 independent relay outputs (both relays timed or timed and instantaneous) Wide input signal and supply range 24-240 V ac/dc Time range: 0.1 seconds to 120 days High timing accuracy LED indication of power and relay status IP20 (terminal), IP40 (enclosure) protection
