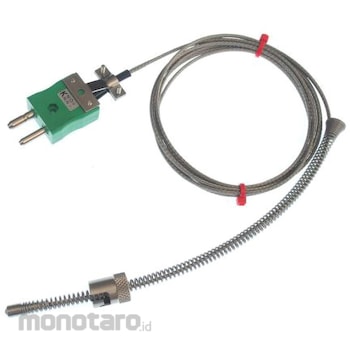

RS PRO RS Pro Thermocouple XQ-1494 K Type, Standard Connector Type, -60°C to +350°C
#Grup produk P115451393
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationThermocouple Type = K Probe Diameter = 6mm Minimum Sensing Temperature = -60°C Maximum Sensing Temperature = +350°C Cable Length = 3m Terminal Type = Meets Standard Connector Standard = IEC Type K or J Adjustable Bayonet Thermocouple. Adjustable insertion depth Tip diameter: 6.0 m 170 mm spring and adjustable locking cap (11.5 mm inner diameter single slot) Fiberglass insulated lead with stainless steel braided sheath, 7/0.2 mm Temperature rating: 350°C Cable clamp and Equipped with standard thermocouple plug Excellent heat resistance, but unsuitable for locations where fluids are present. Tolerance class: 2 according to IEC-584 Insulation rating: -60°C to 350°C (up to 400°C for short periods) Color coding (core and sheath) according to IEC-584-3 Types J and K available
