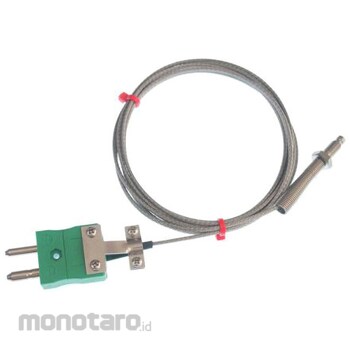

RS PRO RS Pro Thermocouple XQ-1477 K Type, Standard Connector Type, -60°C to +350°C
#Grup produk P115451135
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationThermocouple Type = K Minimum Sensing Temperature = -60°C Maximum Sensing Temperature = +350°C Cable Length = 2m Terminal Type = Standard Connector Meets Standards = IEC Type K Nozzle Thermocouple. Thermocouple M6 Housed in Stainless Steel Threaded Bolt x 1 mm screw Grounded tip for fast response Rated temperature: 350°C Equipped with 2 m glass fiber insulated lead with stainless steel braid jacket, 7/0.2 mm cable clamp and standard thermocouple plug Excellent heat resistance but not suitable where fluid is present. Tolerance class: 2 according to IEC-584 Insulation rating: -60°C to 350°C (up to 400°C for short periods) Color coding (core and sheath) according to IEC-584-3
