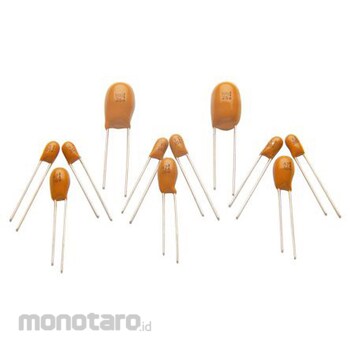

RS Pro Tantalum Capacitors RS Pro CB series 22μF epoxy coated solid electrolytic tantalum capacitors have a rated voltage of 10V dc and a leakage current of 500nA.
The dimensions are 5.5 mm x 5.5 mm x 9.5 mm x 0.5 mm (L x D x H x lead diameter).
Features and Benefits Tolerance: ±20% Operating Temperature Range: -55°C to 125°C Life Test: 1000 hours Lead Pitch: 2.5mm Dissipation Factor: Less than 0.08% Through-hole Mounting Package/Case: C Applications Electronics Industry Certifications ANSI/ESD S20.20: 2014 BS EN 61340-5-1: 2007
RS PRO RS PRO Tantalum Capacitor, 22μF, 10V dc, C
#Grup produk P115441031
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationTechnology = Electrolytic Capacitance = 22μF
Voltage = 10V dc
Mounting Type = Through-Hole Package/Case = C
Lead spacing = 2.5mm
Tolerance = ±20%
Length = 5.5mm
Depth = 5.5mm
Height = 9.5mm
Dimensions = 5.5 x 5.5 x 9.5mm
Operating temperature Max = +125°C
Lead diameter = 0.5mm
