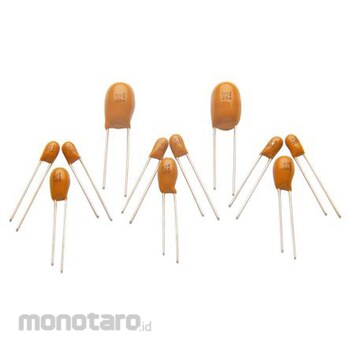

RS Pro Tantalum Capacitors RS Pro CB series 10μf epoxy coated solid electrolytic tantalum capacitors have a rated voltage of 10VDC and a leakage current of 500nA.
The dimensions are 5 mm x 5 mm x 8 mm x 0.5 mm (length x depth x height x lead diameter).
Features and Benefits Tolerance is 20% Operating temperature range: -55°C to 125°C Life test: 1000 hours Lead pitch is 2.5mm Dissipation factor is less than 0.08% Through-hole mounting Package/case: B Positive polarization application Electronics industry certifications ANSI/ESD S20.20: 2014 BS EN 61340-5-1: 2007
RS PRO RS PRO Tantalum Capacitor, 10μF, 10V dc, B
#Grup produk P115440351
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationTechnology = Electrolytic Capacitance = 10μF
Voltage = 10V dc
Mounting Type = Through-Hole Package/Case = B
Lead spacing = 2.5mm
Tolerance = ±20%
Length = 5mm
Depth = 5mm
Height = 8mm
Dimensions = 5 x 5 x 8mm
Electrolyte type = solid °C
Tolerance (plus) = +20%
