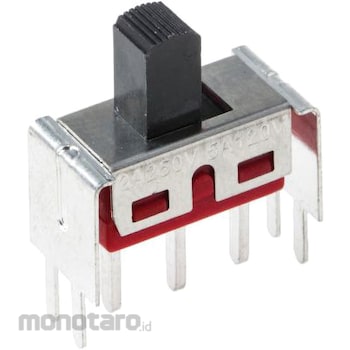

RS PRO RS Pro Slide switch 1 circuit 2 contacts 5 A @ 28 V dc
#Grup produk P115426494
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationContact Configuration = SPDT Mounting Type = Through Hole Switch Operation = On-On Contact Current Rating = 5 A @ 28 V dc Terminal Type = Through Hole Actuator Type = Top Width = 8mm Depth = 9.3mm Dimensions = 8 x 9.3 mm Contact Resistance = 10mΩ Mechanical Life = 30000Cycles Maximum Operating Temperature = +85°C RS - Miniature Slide Switch. Suitable for wave soldering at 260°C for 5 seconds Black Nylon Actuator, DAP Case and Stainless Steel Housing Typical Application: Portable products, instrumentation, white goods, medical, IT and communication equipment substrates or front panel controls, etc.
