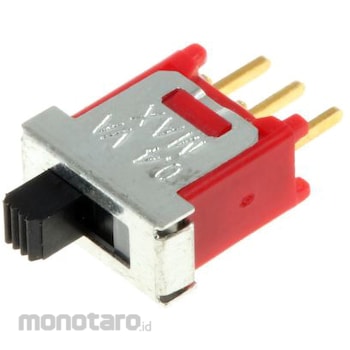

RS PRO RS Pro Slide switch 1 circuit 2 contacts 400 mA @ 20 V
#Grup produk P115426379
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationContact Configuration = SPDT Mounting Type = PCB Switch Operation = On-On Contact Current Rating = 400 mA @ 20 V Terminal Type = Through Hole Actuator Type = Slide Length = 10.16mm Width = 5.08mm Depth = 9.2mm Dimensions = 10.16 x 5.08 x 9.2mm Contact Resistance = 20mΩ Mechanical Life = 30000Operations Minimum Operating Temperature = -30°C RS - Micro Miniature Slide Switch. Phosphor bronze gold plated contacts Interchangeable with ultra-miniature toggle switches Mechanical life: 100000 cycles For low level switching and suitable for applications where board space is a priority Brass actuator. Glass-filled, UL94-V flame-retardant polybutylene terephthalate (PBT) case
