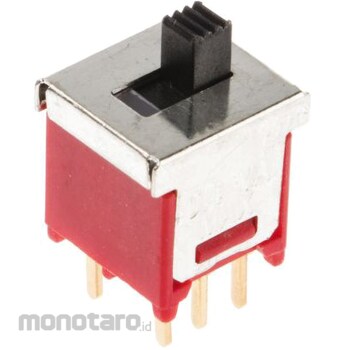

RS PRO RS PRO Slide switch
#Grup produk P115426333
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationContact configuration: Double pole double throw (DPDT) * Mounting type: PCB * Switch operation: Latch * Contact rated current: 5 A @ 28 V dc * Terminal type: Through hole * Actuator type: Slide * Length: 12.7 mm * Width: 11.43mm * Dimensions: 12.7 x 11.43mm * Contact resistance: 10mΩ * Mechanical life: 30000Cycles * Rated voltage: 28V dc * RS-Miniature slide switch. Suitable for wave soldering at 260 oC 5 seconds Black nylon actuator, DAP cases and stainless steel housings Typical applications Handheld products, instrumentation, white goods, medical care, IT and communication equipment boards or front panel controls, etc.
