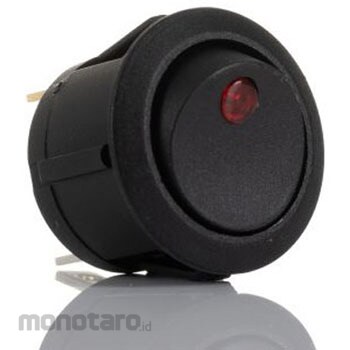

RS PRO Illuminated SPST Rocker Switch. The RS Pro single pole single throw (SPST) rocker switch has an on/off latching action and is rated at 250V ac and 10A.
The round nylon case and buttons are black with a red illuminated neon dot.
The switch has silver-plated copper terminals and a panel cutout that is 20.6mm wide and 20.8mm high.
Features and Benefits Electrical life is 10,000 cycles Maximum contact resistance is 30M Ω Operating force ranges from 300gf to 600gf Operating temperature range: -25°C to 125°C Applications PC peripherals Medical instrumentation certified UL certified RoHS compliant
RS PRO RS PRO Rocker Switch SPST, Illuminated, Cut Out Width: 20.6mm
#Grup produk P115423992
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationContact configuration = SPST
Operating characteristics = On-Off
Panel cutout width = 20.6mm
Panel cutout height = 20.8mm
Contact current rating = 6 A
Illumination = Yes Button Color = Black Mounting Type = Panel Termination Style = Quick Connect Nameplate Name = Dot Symbol
AC rated voltage = 250V
Case material = Nylon°C
