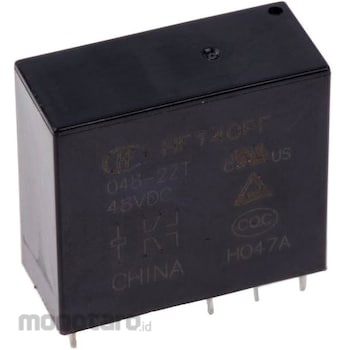

RS PRO RS Pro relay, 2c contact, 48V, 4.17 kΩ
#Grup produk P115405598
Spesifikasi
| Contact Configuration | 2c |
|---|---|
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationCoil Voltage = 48V Contact Configuration = DPDT Switching Current = 10 A Terminal Type = Through Hole Coil Resistance = 4.17 kΩ Maximum Switching Voltage AC = 250V ac Maximum Switching Voltage DC = 30V dc Application Type = Power Length = 29mm Depth = 13mm Height = 26.3mm Dimensions = 29 x 13 x 26.3mm Electrical life = 100000 cycles UL (file number E134517), TUV (file number R50055991), CQC (file number CQC02001001951). Miniature intermediate power relay. Contacts: 2 form C, DPDT 5 mm pinning Dielectric strength: 5 kV (between coil and contact) Maximum surge voltage: 10 kV (between coil and contact)
