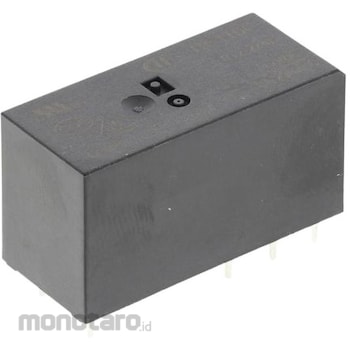

RS PRO RS Pro relay, 2c contact, 12V dc, 360 Ω
#Grup produk P115405473
Spesifikasi
| Contact Configuration | 2c |
|---|---|
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (V) | DC12 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationCoil Voltage = 12V dc Contact Configuration = DPDT Switching Current = 8 A Terminal Type = Through Hole Coil Resistance = 360 Ω Maximum Switching Voltage AC = 440V ac Maximum Switching Voltage DC = 300V dc Application Type = Power Length = 29mm Depth = 12.7mm Height = 15.7mm Dimensions = 29 x 12.7 x 15.7mm Withstand voltage between coil and contacts = 5kV ac IEC60335-1. UL (file number E134517), VDE (file number 116934), CQC (file number CQC02001001951). Rush Relay. High inrush: TV-5 80 A (125 Vac) Low profile, max height: 15.7 mm 5 mm pinning Dielectric strength: 5 kV between coil and contacts Maximum surge voltage: 10 kV between coil and contacts ) wash-resistant creepage distance: 10 mm conforms to VDE0435 / 0631 / 0700
