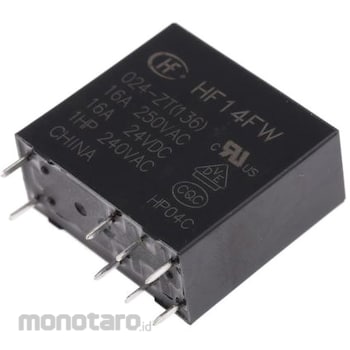

RS PRO RS Pro relay, 1c contact, 24V, 1.1 kΩ
#Grup produk P115405376
Spesifikasi
| Contact Configuration | 1c |
|---|---|
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationCoil Voltage = 24V Contact Configuration = SPDT Switching Current = 20 A Terminal Type = Through Hole Coil Resistance = 1.1 kΩ Maximum Switching Voltage AC = 277V ac Maximum Switching Voltage DC = 30V dc Application Type = Power Length = 29mm Depth = 13mm Height = 26.5mm Dimensions = 29 x 13 x 26.5mm Operating Temperature Max = +85°C UL (file number E134517), TUV (file number R9659294), CQC (file number CQC02001001955). Miniature high power relay. Contacts: 1 form C, SPDT 5 mm pinning Dielectric strength: 4 kV (between coil and contact)
