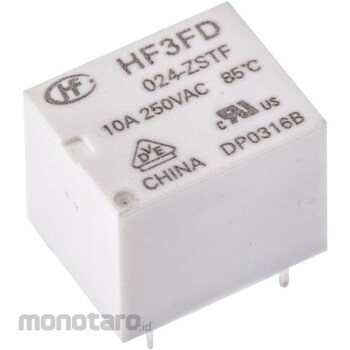

RS PRO RS Pro relay, 1c contact, 24V dc, 1.6 kΩ
#Grup produk P115405330
Spesifikasi
| Contact Configuration | 1c |
|---|---|
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (V) | DC24 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationCoil Voltage = 24V dc Contact Configuration = SPDT Mounting Type = Board Mount Terminal Type = Through Hole Coil Resistance = 1.6 kΩ Maximum Switching Voltage AC = 277V ac Maximum Switching Voltage DC = 30V dc Application Type = Power Length = 19mm Depth = 15.2mm Height = 15.5mm Dimensions = 19 x 15.2 x 15.5mm Operating Temperature Min = -40°C IEC60335-1. UL (file number E134517), VDE (file number 40014057). Subminiature relay. Subminiature, standard board layout. Dielectric strength: 2 kV (between coil and contact) Flammability rating: UL94 V-0 Class F insulation Cleaning resistance Conforms to CTI250, VDE0631/0700
