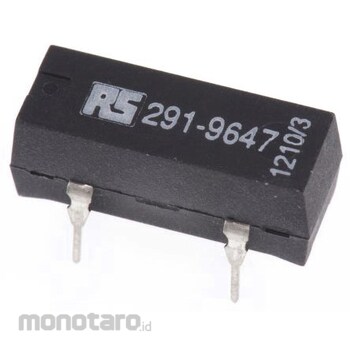

RS PRO RS Pro Reed Relay SPNO 24V dc
#Grup produk P115403536
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|---|
| Rated Voltage (V) | DC24 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationContact Configuration = SPNO Coil Voltage = 24V dc Mounting Type = Board Mount Max Switching Current AC = 0.5 A Max Switching Current DC = 0.5 A Max Switching Voltage AC = 300V ac Max Switching Voltage DC = 300V dc Coil Power = 290mW Coil Resistance = 2.15 kΩ Length = 19.3mm Height = 7.5mm Depth = 7mm Dimensions = 19.3 x 7 x 7.5mm Withstand voltage between coil and contacts = 2.5kV dc Maximum switching power DC = 10 W SPNO DIL relay. Normally open contact, capable of mains switching at 240V AC Industry standard pin configuration Coil suppression diode between pins 2 and 6 Operating temperature: -20 to +70°C
Ulasan Produk
Tidak ada ulasan
