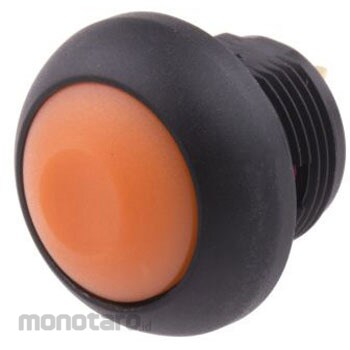

RS PRO RS PRO Push Button Switch, Momentary, PCB, SPST

Operating Characteristics = Momentary Illumination = None Panel Cutout Diameter = 13.6mm
Mounting Type = PCB
Push Button Color = Orange Contact Configuration = SPST
Rated voltage = 32/125V ac
Push button type = Dome
IP protection rating = IP67
Contact current rating = 400 mA @ 32 V ac
Contact Material = Gold over Silver Manufacturer Part Number = PAS6B2M4CES4V

Sub-Miniature Push Button Switch. This sub-miniature push button switch provides an excellent mechanism for controlling machines and processes with momentary switch action and an RS PRO branded single pole on/off switch.
The caps are made from high quality polyamide 6/6 with gold-plated silver-plated contacts.
Push button switches available for panel mounting with screw bushing or snap-in.
.Operating force: 2N-5N .Contact bounce: 10 ms .Mechanical life: 1,000,000 cycles .Soldering: Max 350°C for 5 seconds. Typical applications for sub-miniature push button switches: .Test equipment .Telecommunications equipment .Network systems .Mobile devices. RS PRO is a range of original branded products, offering a wide range of high-quality, great value products.
