Number of poles = 4
Pitch = 5mm
Number of rows = 1
Mounting Type = Through-hole Mounting Male/Female = Male Wiring Method = Screw Type = PCB Terminal Block Rated Current = 10A
Connection Direction = Straight Color = Green Rated Voltage = 300 V
Depth = 14.35mm

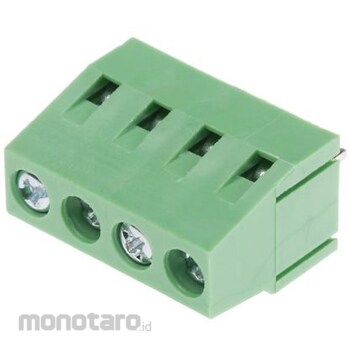

RS 5.0mm Standard Profile Rising Clamp PCB Terminal Block. 5mm pitch standard profile PCB terminal block.
It features professional-grade rising clamp terminals and a green UL94-V0 flame-retardant PA66 housing.
This 5mm standard profile terminal block has M2.5 nickel-plated stainless steel fixing screws and guide pin alignment and accepts wire sizes ranging from 0.32-3.3mm² (22-12 AWG).
RS PRO RS PRO PCB Terminal Block, 5mm Pitch, Single Row, 4 Way, Green
#Grup produk P115375914
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
