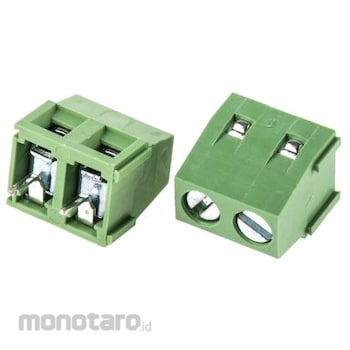

RS PRO RS Pro PCB terminal block, 5mm pitch, 1 row, 2 poles, green

Sebelum PPN:
Rp229.900
Spesifikasi
ROHS Directive (Corresponding to 10 Substances)Correspondence

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature
Specification
Number of Contacts = 2 Pitch = 5mm Number of Rows = 1 Mounting Type = PCB Mount Gender = Male Terminal Method = Clamp Type = PCB Terminal Block Rated Current = 10A Body Orientation = Straight Color = Green Rated Voltage = 300 V Material = Polyamide Width = 8.1 mm RS 5.0 mm Low Profile Rising Clamp Board Terminal Block. 5 mm pitch end stackable board terminal block. It features a low profile 10mm tall design, commercial rising clamp terminals, and a green UL94-V0 flame retardant PA66 housing. This 5 mm low profile terminal block features M2.5 nickel plated locking screws and guide pin alignment and accepts solid/stranded wire sizes in the 0.32-3.3 mm 2 (22-12 AWG) range.

Ulasan Produk

Tidak ada ulasan
