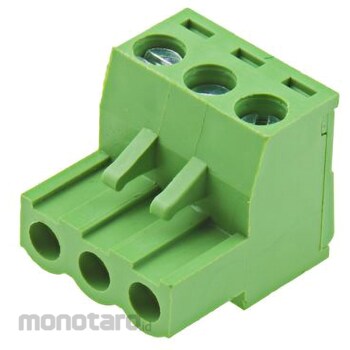

RS PRO RS Pro PCB terminal block, 5.08mm pitch, 1 row, 3 poles, green
#Grup produk P115375330
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationNumber of Contacts = 3 Pitch = 5.08mm Number of Rows = 1 Mounting Type = PCB Mount Gender = Female Terminal Method = Clamp Type = Plug Rated Current = 15A Body Orientation = Right Angle Color = Green Voltage Rating = 300 V Material = Polyamide Depth = 15mm RS 5.08 mm Rising Clamp Terminal Block Plug Connector. 5.08 mm pitch pluggable female terminal block connector. Features a polarized molded green UL94-V0 flame retardant PA66 commercial rising clamp terminal and housing. This 5.08 mm terminal block plug connector features tin-plated brass terminals, M2.5 nickel-plated steel retaining screws, and guide pin alignment for solid/stranded cables in the 0.33-2 mm 2 (22-14 AWG) wire size range correspond to
