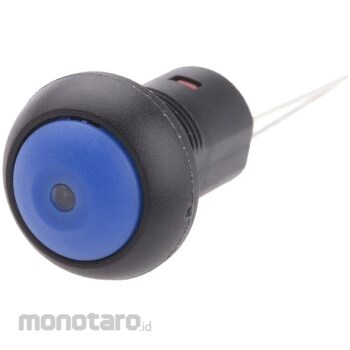

RS PRO RS Pro Miniature Push Button Switch, SPST-NO, 100 mA @ 24 V dc, Off-On, PCB
#Grup produk P115366350
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationSwitch Action = Off-On Contact Configuration = SPST-NO Mounting Type = PCB Panel Cutout Size = 13.6 (Dia.)mm Panel Cutout Diameter = 13.6mm Contact Current Rating = 100 mA @ 24 V dc Contact DC Voltage Rating = 24V Illumination = Yes Actuator Color = Blue LED Color = White Terminal Type = Solder Lug Subminiature Illuminated Pushbutton Switches. Pushbutton switches are available in threaded bushing or snap-in panel mounting. Each switch features center spot LED lighting. Operating power: 2N -> 5N Contact bounce: 10 ms Mechanical life: 1000000 times Soldering: max. 350°C for 5 seconds
