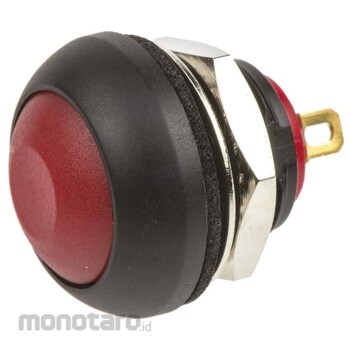

RS PRO RS Pro Miniature Push Button Switch, SPST-NC, 400 mA @ 32 V ac, On- (On), Panel Mount
#Grup produk P115366314
Spesifikasi
| Belt-End Finish | Solder |
|---|---|
| Button Color | Red |
| Button Shape | dome |
| Case Color | Black |
| Contact Configuration | SPST-NC |
| Contact Material | Gold-plated silver |
| Contact Rated Current (mA) | 400@32Vac |
| Contact Rated Voltage (V) | AC32,AC125,DC50 |
| Cutout Diameter (mm) | (Panel) 13.6 |
| Operating Patterns | On-(Off) |
| Operating Temperature Range (°C) | Up to 85 |
| Protection Class | IP67 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (V) | AC32/50/125 |
| Surface Mount Device | Panel mount |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationSubminiature push button switches available in screw bushing or snap-in panel mounting. Contact bounce: 10ms, soldering: max. 350°C, 5 seconds.
