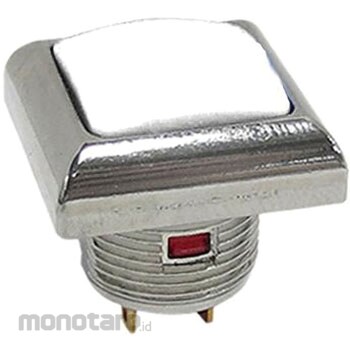

RS PRO RS Pro Miniature Push Button Switch, SPST, 200 mA @ 50 V dc, 500 mA @ 32 V ac
#Grup produk P115366174
Spesifikasi
| Belt-End Finish | Solder Lug |
|---|---|
| Button Color | White |
| Button Shape | Square |
| Case Color | chromium |
| Contact Configuration | SPST |
| Contact Material | Gold plated silver |
| Contact Rated Current (mA) | 200@50Vdc,500@32Vac |
| Contact Rated Voltage (V) | DC50,AC250 |
| Cutout Diameter (mm) | (Panel) 13.6 |
| LED Color | Yellow |
| Operating Patterns | Momentary |
| Protection Class | IP67 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Voltage (V) | AC250@200mA,DC50@200mA |
| Standard | IEC60629 2001, PB lead-free, RoHS compliant |
| Surface Mount Device | Panel mount |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationSubminiature push button switch, square. This push button switch is designed for a variety of applications and environments with an operating temperature range of -30 to +85°C and is rated IP7 (top). This switch is single-pole, single-throw, with off-momentary switching action. It is panel mountable and each unit comes with an M12 nut, lock washer, and splash-proof O-ring. IP67 sealed (top). Contact terminals: silver with gold plating, panel cutout, square button.
