RS PRO RS PRO limit switch

Specification

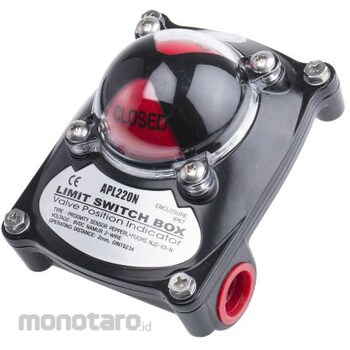

IP Rating: IP67. Housing Material: Aluminum. Connection Type: M20. Maximum Operating Temperature: +80°C. This switch box mounts to the actuator with a NAMUR-rated stainless steel mounting bracket. IP67 Limit Switch Box. This powder-coated aluminum switch box is IP67 rated and accommodates two 2-wire proximity sensors for open/close position indication. Its rugged, compact design includes a highly visible beacon indicator. The retaining cover bolts are held securely in place during installation and maintenance. The spring-loaded spline cam is easily adjustable without tools. Dual cable entries are available. Enclosure Material: Die-cast aluminum, IP67 rated Enclosure Finish: Polyester powder coated Shaft Material: Stainless steel Cable Entry: 2 x M20 (optional PG13.5 and 1/2" NPT) Sensor Type: 2 x P/F NJ2-V3 N proximity sensors Sensor Class: Atex IIG Eexia IIC T6 Voltage: 8 V dc - 2 wire Ambient Temperature: -20 to +80°C
