RS PRO RS PRO IEC Connector C20 Male Snap-in 16A

IEC Connector Type = C20
Mounting type = Snap-in Male/female = Male Rated current = 16 A, 20 A
Connection Direction = Straight Connection Method = Solder / Faston Switch Type = None Number of Fuse = None
Rated voltage = 250 V

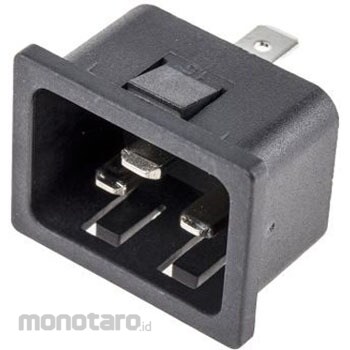

UL (C, US), VDE, CE... IEC Plug C20, Panel Mount Connector. IEC plug C20 type panel mount inlet connector.
The body is made of nylon 6, the mating contacts are tin-plated copper alloy, and the faston terminals are 6.3 x 0.8 mm, rated at 16 A (VDE) and 20 A (UL, C-US) and 250 V ac.
A hard-wearing, durable solution for a variety of applications requiring an IEC C20 panel mount plug connector.
Features and Benefits: . High voltage breakdown test (1 minute): 2 KV ac . Minimum insulation resistance: 1000 MΩ @ 500 V dc . Allowable temperature (with/without load): 0 to 70°C . Rated current: 16 A (VDE), 20 A (UL, C-US) @ 250 V ac . Contact resistance: 10 mΩ (max)
