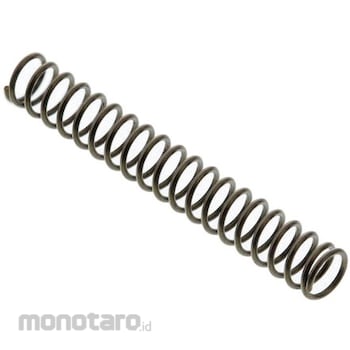

RS PRO RS Pro compression spring, 3.6mm x 25.5mm
#Grup produk P115287196
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
SpecificationOuter Diameter = 3.6mm Wire Diameter = 0.4mm Free Length = 25.5mm Minimum Working Length = 10.6mm Minimum Working Length Load = 6.37N Material = Alloy Steel Spring Rate = 0.43N/mm End = Close (Square)/ The raw minimum effective length load is the load required to compress the spring to that length. All dimensions and tensions comply with DIN 2095 (Grade 2). Piano wire compression spring. Termination diameter up to 0.8 mm with square ground edges Termination diameter 1.00 mm and above with square edge grinding Right-handed helix
