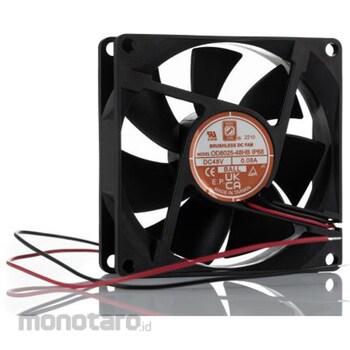

RS Pro OD6025-48HBIP68 axial fan has a PBT, UL94 V-0, plastic frame and impeller.
Connect two 24 AWG lead wires.
It has a dual ball bearing system.
The insulation resistance is 10 MΩ at 500 V dc, with a current of <1 mA at 500 V ac/min.
The operating temperature range is -15 to +65°C and the storage temperature range is -25 to +70°C. Rated voltage: 48 V dc ± 10% Rated power: 3.8 ± 15% (Watts) Rated current: 0.08 ± 15% Rated speed: 3300 ± 15% (RPM) Air flow: 40 ± 15% (CFM) Noise level: 33 (dB) Max. Static pressure: 0.23 in. H2O ± 15%
RS PRO RS PRO Axial Fan, Power Supply: 48 V dc, DC, 80 x 80 x 25mm
#Grup produk P115253791
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationSupply voltage = 48 V dc
Height = 80mm
Power consumption = 3.8W
Depth = 25mm
Dimensions = 80 x 80 x 25mm
Noise level = 33dB
Fan speed = 3300 rpm
Bearing Type = Ball
IP rating = IP68
