RS PRO Key switch, RS PRO
#Grup produk P115231957
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

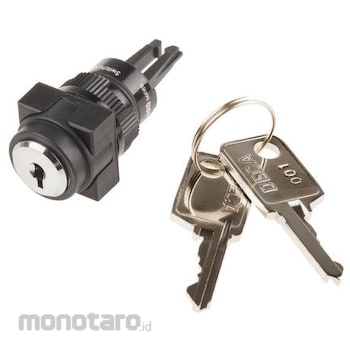

SpecificationNumber of Positions: 2, Switch Operation: Latch, Contact Configuration: Single Pole Double Throw (SPDT), Contact Current Rating: 5 A, IP Rating: IP40, Terminal Type: Solder, Case Material: Stainless Steel, Bezel Shape: round shape, depth from panel: 37mm, key index angle: 90°, contact material: silver, operating temperature Min: -20°C, 30mm anti-vandal key lock switch. Ring lighting to show location and power supply The anti-vandal key lock switch with is available in different colors. The shockproof protection of this switch is IK03 and the front panel is IP40. These products are equipped with LED resistors to protect against forward voltage fluctuations. This switch body is made of polished stainless steel. Electrical life: 50000 opening and closing operations (at full load) Panel cutout diameter: 30.2 mm Keys can be removed at all positions
