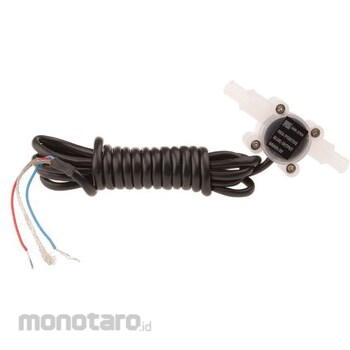

RS PRO Flow transducer 0.05 → 10 L / min, 4.5 → 24 V dc

Specification
Maximum Flow = 0.05-> 10 L/min Electrical Connection = Cable Control Output = Pulsed Supply Voltage = 4.5-> 24 V dc Pipe Diameter Range = 8 mm Minimum Operating Temperature = -25°C Maximum Operating Temperature = +125°C With = Oil and for water vehicle applications, a transducer should be installed before the pressure regulator between the fuel pump and the carburetor to minimize gassing. Install the device vertically if gas evolution is expected. Liquid Flow Transducer. Produces a pulsed output at a frequency proportional to the flow through the device. Any one of the four throttle jets (included) can also be inserted into the entry port to provide a lower flow range. A digital LED counter is available for use with this transducer (RS part number: 348-1424 348-1424). Features and Benefits. Compatible with many liquids, including water and most fuels Connects with 8 mm and 12 mm diameter hoses Highly reliable and accurate Comes with approximately 2 m of oil-resistant shielded cable Maximum operating pressure: 10 bar. Product Application Information. Drink dispensing. Laboratory tests. Cooling equipment.
