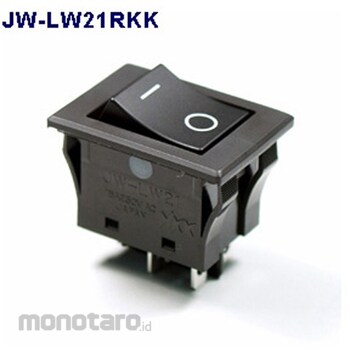

NKK Switches (formerly Nippon Kaikei) Waterproof 2-pole single-throw rocker switch, black
#Grup produk P115183739
Spesifikasi
| AS ONE Part Number | 68-2026-44 |
|---|---|
| Circuit | 2-pole single throw |
| Color of Operating Part | Black |
| Current Capacity | 16A 125VAC,16A 250VAC |
| Function | waterproof |
| Functional Operation | ON-OFF |
| Heat Resistance | When using a soldering iron: Tip temperature: 390°C or less; Soldering time: 4 seconds or less; Number of times: 2 times (after returning to room temperature) |
| Insulation Resistance (GΩ) | 1 or more (DC500V) |
| Maximum Mounting Panel Thickness (mm) | 1~4 |
| Mounting Dimensions (mm) | 20.5x30.7 |
| Number of Poles | 2 |
| Operating Temperature Range (°C) | -25~85 |
| Operation Mechanism | Lock lever |
| Standard | UL(TV-8),CSA(TV-8),VDE |
| Terminal Shape | Solder (can also be used as tab #187) |
| Withstand Voltage (V/minute) | AC2k or more (between terminals), AC4k or more (between terminals and earth) |
