All ET small toggle switches subject to the Electrical Appliance and Material Safety Law have obtained type approval. The box uses a self-extinguishing phenolic resin with excellent heat resistance, arc resistance, and tracking resistance, and is designed to prevent insulation deterioration due to arcs with a contact structure that reduces chattering and bouncing time as much as possible. It is a performance switch.
RoHS compliant product
* The terminal number is displayed on the box.

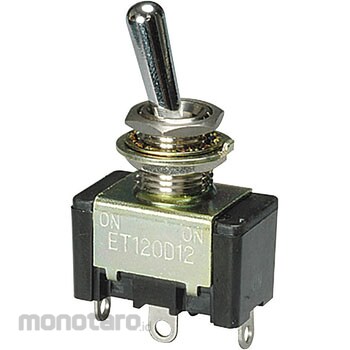

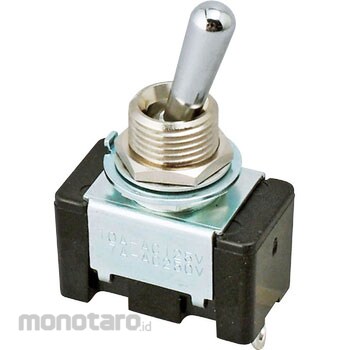

NIDEK Components (formerly Nidec Copal Electronics/Fujisoku) Toggle switch ET series
#Grup produk P115179198
Spesifikasi
| Dimension L (mm) | 27.6±1 |
|---|---|
| Included Accessories | 2 lock nuts, 1 lock washer, 1 locking ring |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Mounting Screw Diameter | M12x1 |
| Number of Poles | 2-pole double throw |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rating | AC125V 25A.AC250V 15A |
| Service Life | (Electrical) 20000 times |
| Surface Treatment | (Lock nut x 1) Nickel plated (Lock nut x 1 / Lock washer / Locking ring) Zinc plated trivalent chromate treatment |
| Switch | ON-ON connection terminals: (2-3 5-6) - (2-1 5-4) |
| Terminal Shape | Solder terminal |
| Withstand Voltage | 1500V AC for 1 minute |
